DP92V-S SIP Video Intercom Datasheet
Download

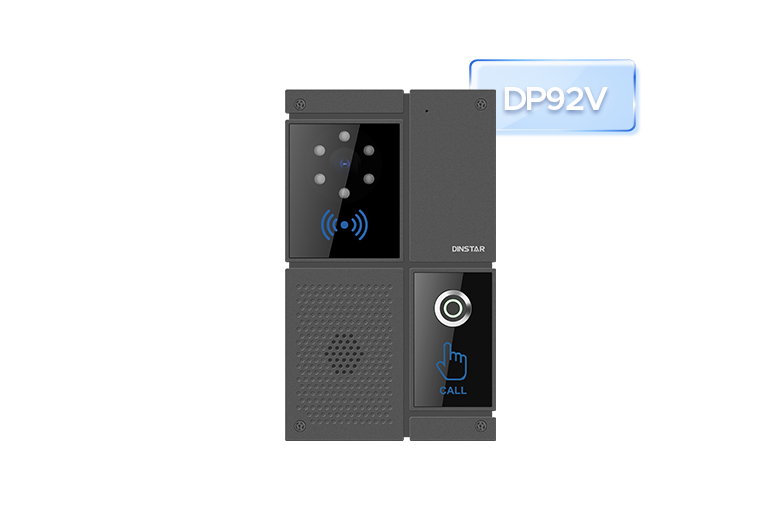

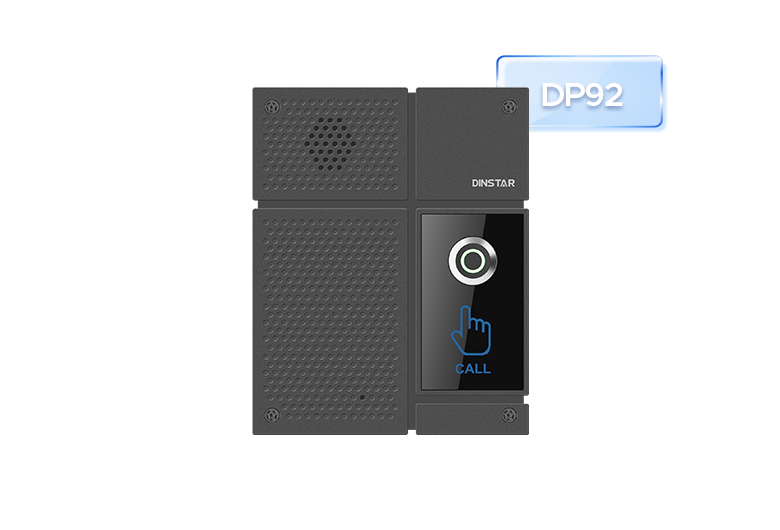

DP92
DP92
DP92
The DP92 Series SIP Intercom offers seamless communication and access control, with optional 4G LTE and RFID capabilities. Available in audio (DP92) and video (DP92V) models, constructed from durable aluminum alloy, IP65, and IK10 proof, they are suitable for various applications such as industry parks, building management, and parking lots. Additionally, the DP92 Series support internet and IoT connectivity for safer communication, making them ideal for emergency call and security systems.
-
4G
-
HD Audio
-
Onvif
-
IK10
-
IP65
-
-35 ℃~65 ℃
|
Model |
D92 |
D92V |
D92G |
D92VG |
|
SIP Accounts |
2 | 2 | 2 | 2 |
|
Camera |
× | √ | × | √ |
| 4G | × | × | √ | √ |

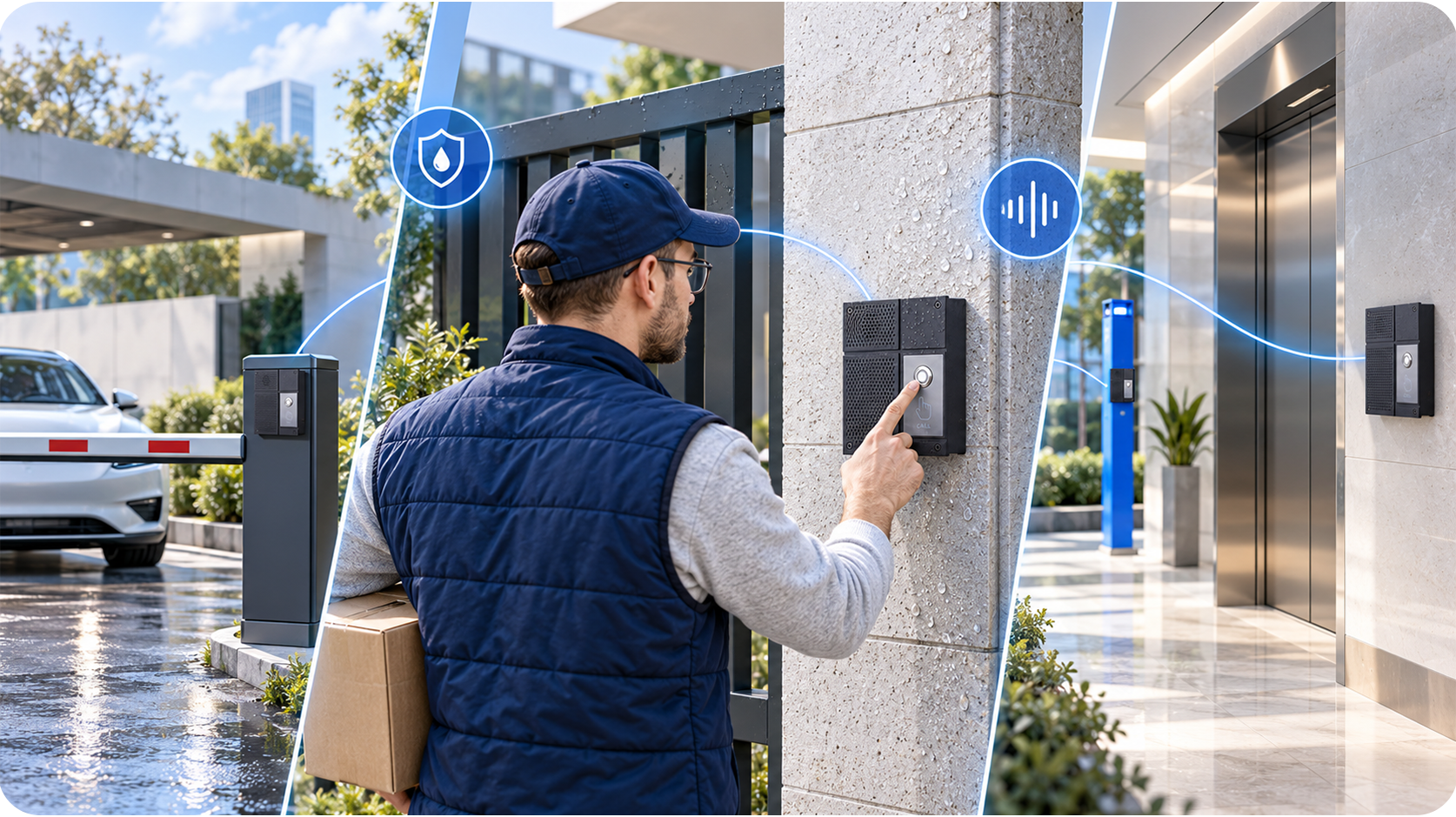

Suitable for Rich Indoor and Outdoor Scenarios
- 2 SIP line, 2 SIP servers
- Full-duplex, Speed dial, Default auto answer
- Action URL/Active URI remote control
- lP65 and lK10 protection grade: dustproof, waterproof and anti-collision
- Featured with a wide temperature range from -35°C to 65°C
- Door access: DTMF tones, RFID card, indoor panel, indoor switch, timed open
- Apt for residential entrances, parking lots, emergency call boxes, elevators...
HD Video & Audio
-
4MP HD camera
-
HD Voice
-
2-way audio stream
-
Echo cancellation with G.168
-
Voice activity detection (VAD)
-
Comfort noise generator(CNG)
-
Built-in Micro and speaker

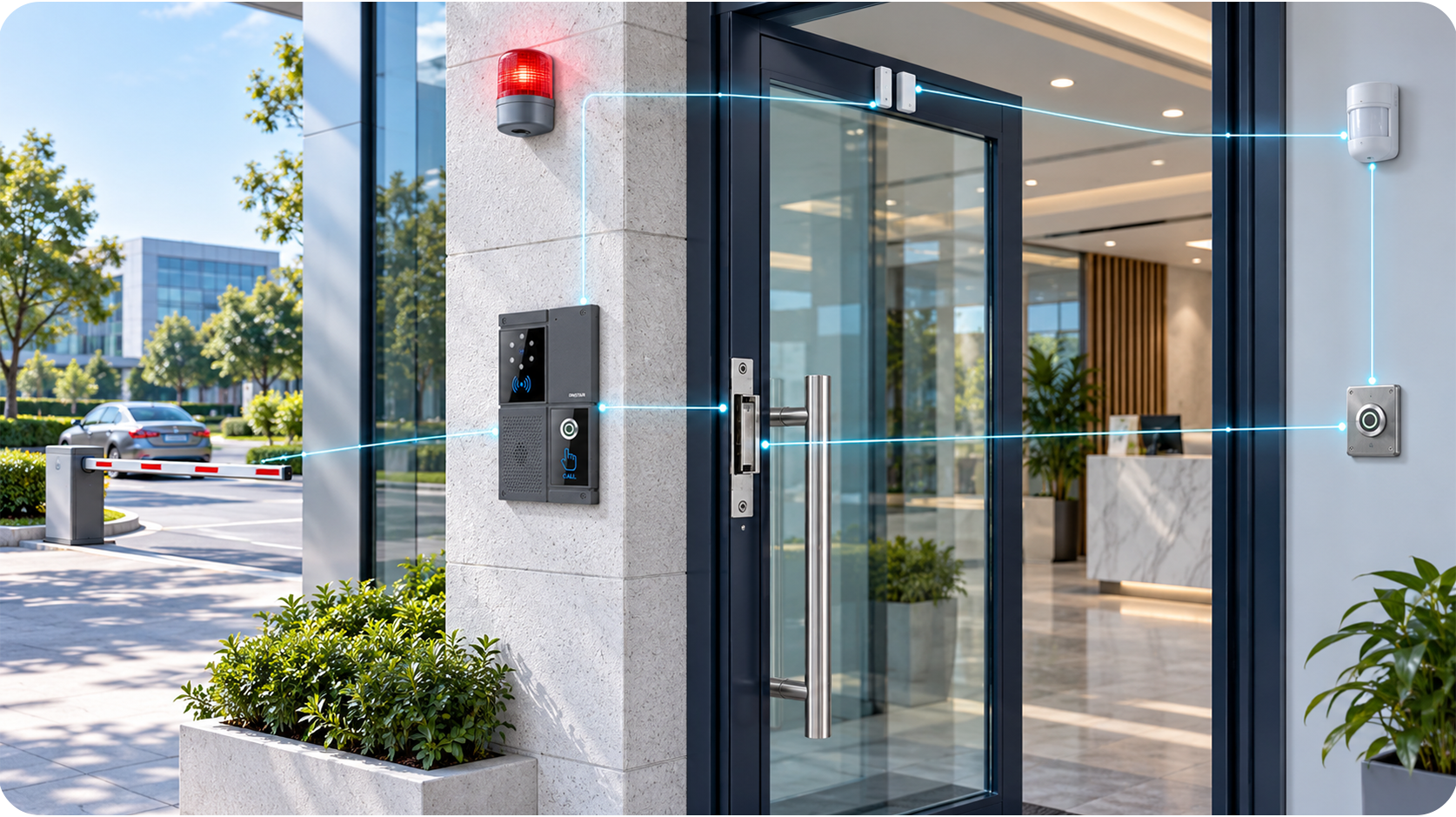

Various Linkage Interfaces
- Electric lock
- Alarm indicator
- Indoor switch
- PIR sensor
- Door magnet
- Barrier gate
Product Features
- DTMF Mode: In‐Band, RFC2833 and SIP INFO
- STUN, Session timer
- HTTP/HTTPS/FTP/TFTP
- SIP over TLS, SRTP
- Syslog
- Configuration web‐based management
- Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
- Voice activity detection (VAD)
- Wideband codec: G.722
- HD Voice
- Default auto answer
- DHCP/Static/PoE
- DNS SRV/ A Query/NATPR Query
- TCP/IPv4/UDP
- Configuration backup/restore
- SNMP/TR069
- HTTP/HTTPS Web Management
- Comfort noise generator(CNG)
- Codec: PCMA, PCMU, G.729, G723_53, G723_63, G726_32
- Two‐way audio stream
- Action URL/Active URI remote control
- Door Phone features
