DP70-W
DP70-W
DP70-W

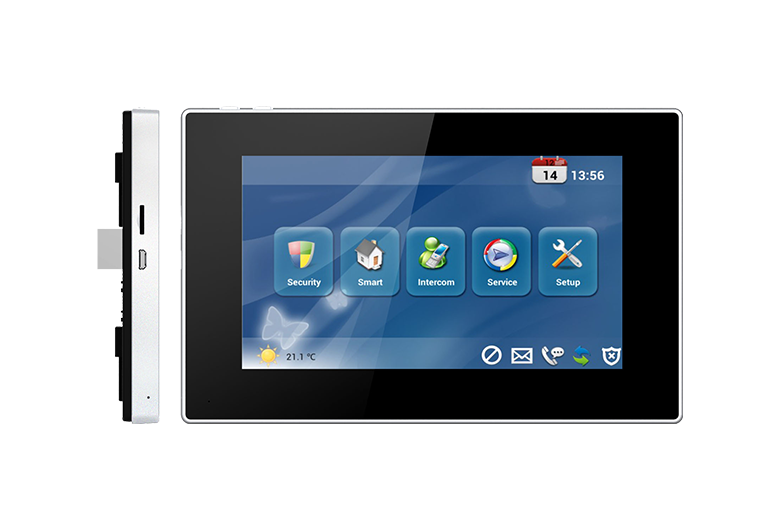

The DP70-W provides multiple functions, including audio and video intercom, emergency call, security alarm and lift control, etc. It also supports communication via SIP 2.0 protocol with IP phone and IP PBX. It allows constructor to make an easy configuration and installation.
-
SIP
-
HD Audio
-
Linux OS
-
Touch Screen
-
Video Linkage
-
-10℃~55℃
Ideal for Business, Institutional and Residential
- HD Voice
- Capacitive touch screen
- Door Access: DTMF tones
- 1 RS485 Port to integrate lift control
- 8 way IP Camera Support
- 8 ports alarm input
- Two‐way audio stream
High Stability and Reliability
-
SIP v2 (RFC3261)
-
RTSP
-
TCP/IPv4/UDP
-
RTP/RTCP, RFC2198, 1889
-
HTTP
Easy Management
- Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
- Syslog
- Configuration via HTTP/HTTPS web
- Configuration backup/restore
- NTP/Daylight Saving Time
- Configuration keypad‐based
- SNMP/TR069
Product Features
- CPU：1GHz, ARM
- Storage：128M
- Resolution：800x480
- Codec：G.711
- Voice activity detection (VAD)
- RAM：64M
- OS：Linux
- Video codec：H.264
- Echo cancellation with G.168
- Built-in microphone and speaker
All Parameters
