UC2000-VE

UC2000-VE GSM/WCDMA/LTE VoIP Gateway

Dinstar UC2000-VE is a 4 or 8 channels GSM/3G/4G VoIP Gateway in a compact field-proven hardware design, used to smoothly transit between mobile and VoIP networks, for transmission of both voice and SMS. Integrated GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platforms, it is suitable for enterprises, multi-site organizations, call terminators and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications. It works standalone and also supports remote SIMs management as an option with Dinstar SIMBank and SIMCloud.

Get a Quote

VoLTE
Voice
SMS
API
SIP
SIMCloud

4/8-channel VoIP GSM/3G/4G Gateway

GSM/WCDMA/LTE support
Voice over LTE (VoLTE)
Hot Swappable SIM Cards
Compatible with mainstream VoIP platform
Mobility Extension, never miss a call
SMS sending & receiving, SMS API
Credit Limit management
Auto CLIP

Application

Mobile connectivity for IP phone system

Mobile trunking for Multi-site offices

GSM/3G as voice backup trunks

Call termination for service providers

Land-line replacement for rural area

Bulk SMS service

Call Center / Contact Center Solution

Easy Management

Intuitive Web interface
Advanced Debug tools
Remote SIMs management with Dinstar SIMBank & SIMCloud
Configuration Backup & Restore

40971265

Product Features

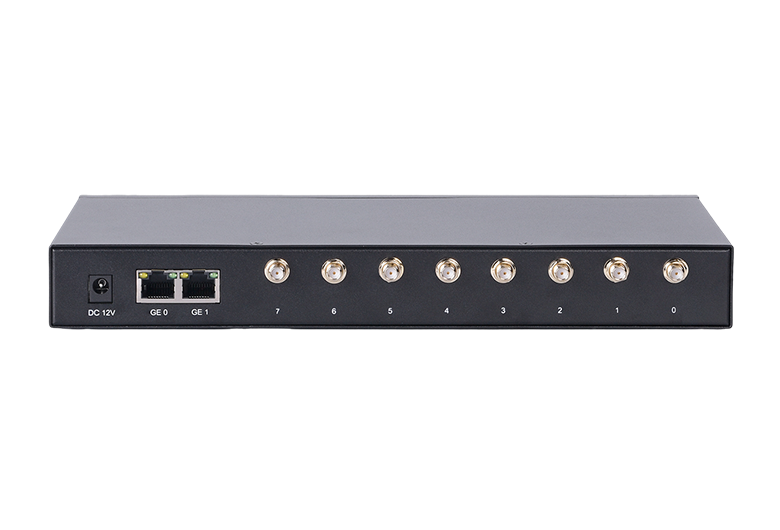

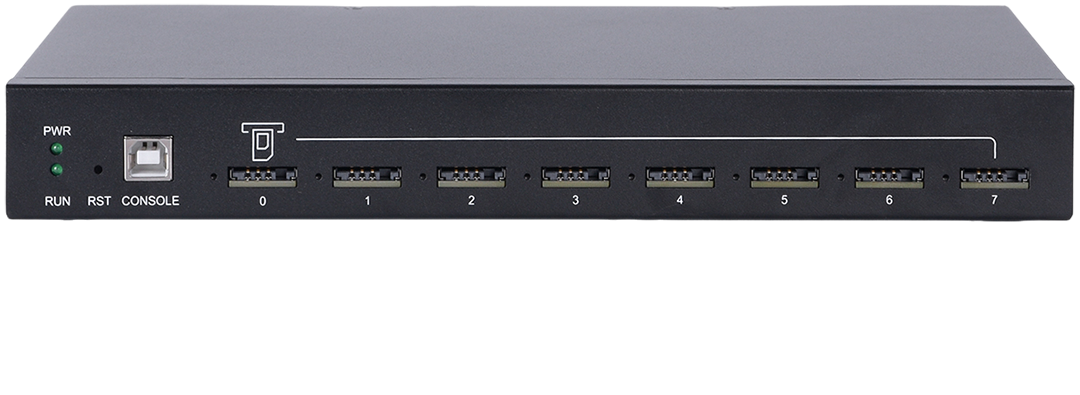

4/8 SIM slot, 4/8 antennas
Built-in antennas combiner (Optional)
GSM: 850/900/1800/1900Mhz
WCDMA: 900/2100Mhz or 850/1900Mhz
LTE: Multiple frequency choices for different countries
SIP v2.0, RFC3261
Codecs: G.711A/U , G.723.1, G.729AB
Echo Cancellation
DTMF: RFC2833, SIP Info
Programmable Gain Control
Mobile to VoIP, VoIP to Mobile
SIP Trunk and Trunk Group
WCDMA: 900/2100Mhz or 850/1900Mhz
SIP Codes Mapping
Port and Port Group
Caller/Called Number Manipulation
SIP Codes Mapping
White/Black List
PSTN/VoIP Hotline
Abnormal Call Monitor
Call Minutes Limitation
Balance Check
Random Call Interval
Auto CLIP

Signaling & RTP Encryption
SMPP for SMS
HTTP API for SMS
Polarity Reversal
PIN Management
SMS/USSD
PSTN/VoIP Hotline
SMS/USSD
SMS to Email, Email to SMS
Call Waiting/Call Back
Call Forward
GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR
HTTPS/HTTP Web Configuration
Configure Backup/Restore
Firmware Upgrade by HTTP/TFTP

CDR(10000 Lines Storage Locally)
Syslog/Filelog
Traffic statistics: TCP,UDP,RTP
VoIP Call Statistics
PSTN Call statistics: ASR,ACD,PDD
IVR Customization
Auto Provisioning
SIP/RTP/PCM Capture
Work with Dinstar SIMCloud/SIMBank (Optional)

All Parameters Product Comparison
