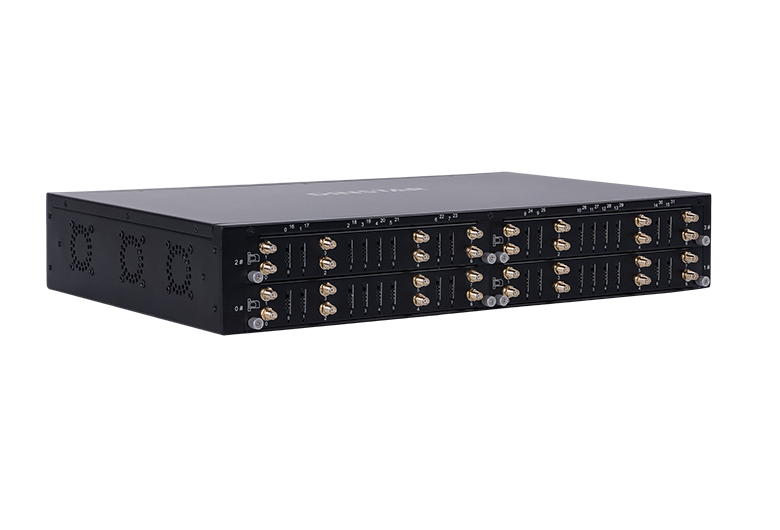

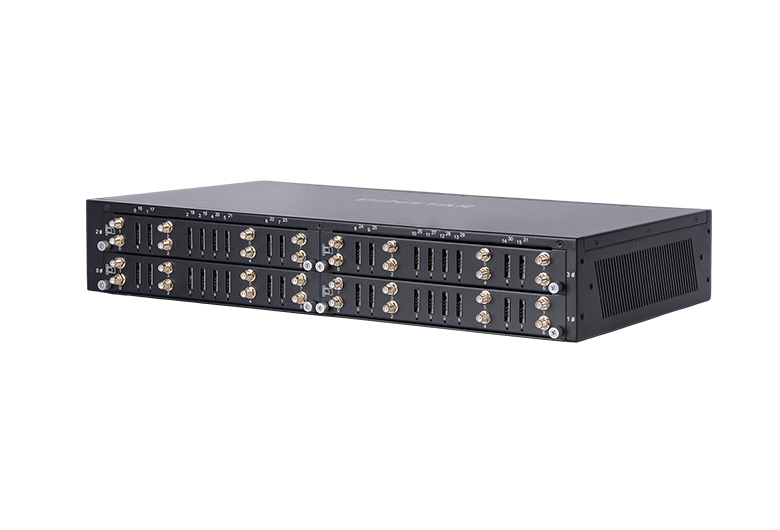

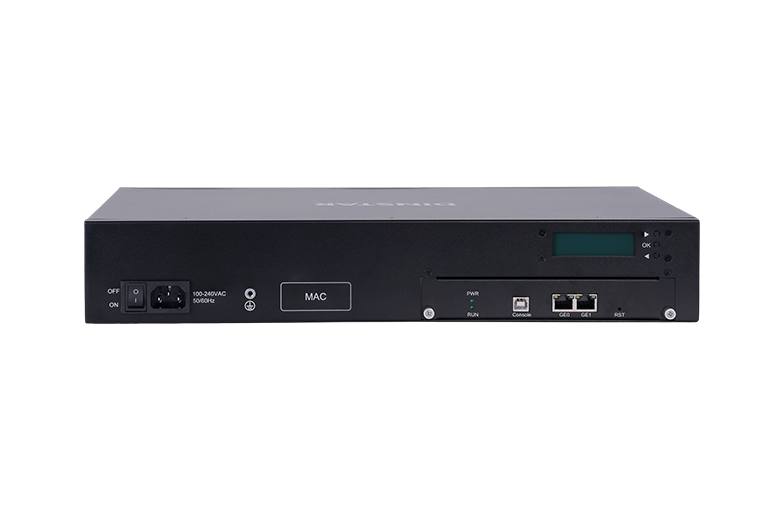

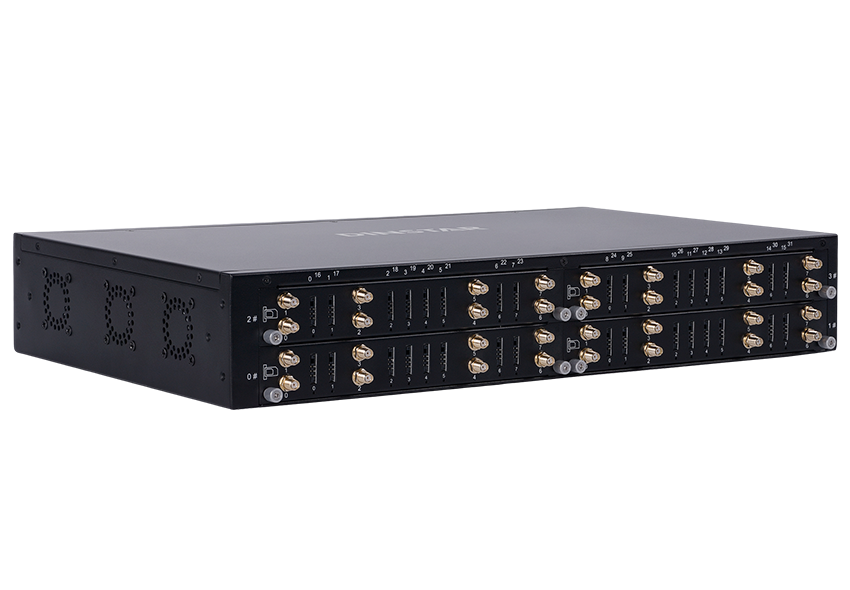

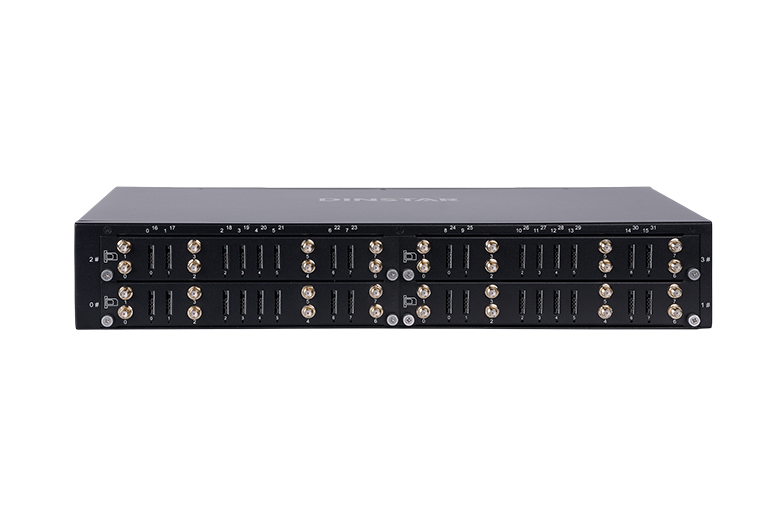

UC2000-VG GSM VoIP Gateway

Dinstar UC2000-VG is a 32-channel GSM/WCDMA/LTE VoIP Gateway in market-proven reliable hardware design, used to establish connections between mobile and VoIP networks, for transmission of both voice and SMS. Integrated GSM/WCDMA/LTE connectivity and SIP protocol compatible with mainstream VoIP platforms, it is suitable for enterprises, multi-site organizations, call terminators and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications.
It works standalone and also supports remote SIMs management as an option with Dinstar SIMBank and SIMCloud.

Get a Quote

VoLTE
Voice
SMS
API
SIP
SIMCloud

32-channel VoIP GSM/3G/4G Gateway

GSM/WCDMA/LTE support
Voice over LTE (VoLTE)
Hot Swappable SIM Cards
Compatible with mainstream VoIP platform
Mobility Extension, never miss a call
SMS sending & receiving, SMS API
Credit Limit management
Auto CLIP

Application

Mobile connectivity for IP phone system

Mobile trunking for Multi-site offices

GSM/3G as voice backup trunks

Call termination for service providers

Land-line replacement for rural area

Bulk SMS service

Call Center / Contact Center Solution

Easy Management

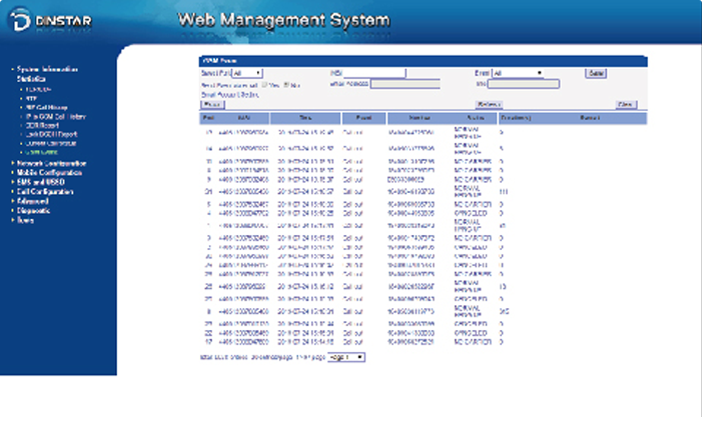

Intuitive Web interface
Advanced Debug tools
Remote SIMs management with Dinstar SIMBank & SIMCloud
Configuration Backup & Restore

40971265

Product Features

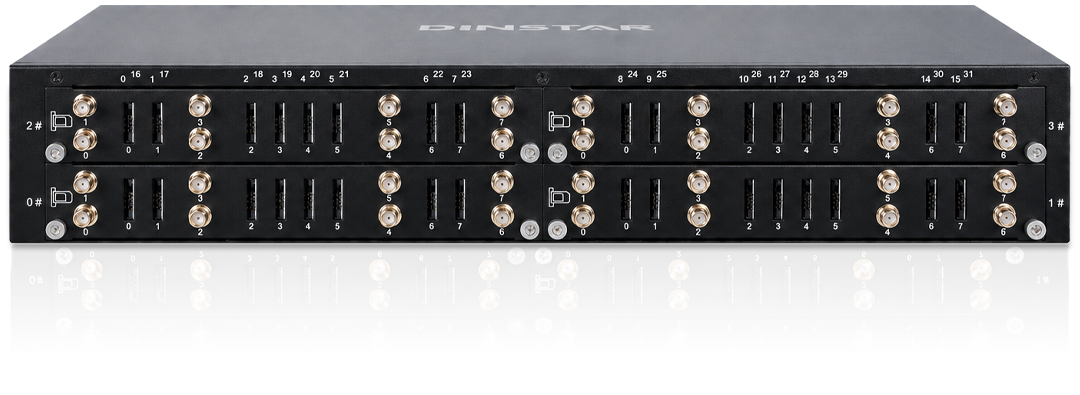

32 SIM slot, 32 antennas
SIP Trunk and Trunk Group
Signaling & RTP Encryption
Configure Backup/Restore
Built-in antennas combiner (Optional)
Port and Port Group
SMPP for SMS
Firmware Upgrade by HTTP/TFTP
GSM: 850/900/1800/1900Mhz
Caller/Called Number Manipulation
HTTP API for SMS
CDR(10000 Lines Storage Locally)
WCDMA: 900/2100Mhz or 850/1900Mhz
SIP Codes Mapping
Polarity Reversal

Syslog/Filelog
LTE: Multiple frequency choices for different countries
White/Black List
PIN Management
Traffic statistics: TCP,UDP,RTP
SIP v2.0, RFC3261
PSTN/VoIP Hotline
SMS/USSD
VoIP Call Statistics
Codecs: G.711A/U , G.723.1, G.729AB
Abnormal Call Monitor
SMS to Email, Email to SMS
PSTN Call statistics: ASR,ACD,PDD
Echo Cancellation
Call Minutes Limitation

Call Waiting/Call Back
IVR Customization
DTMF: RFC2833, SIP Info
Balance Check
Call Forward
Auto Provisioning
Programmable Gain Control
Random Call Interval
GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR
SIP/RTP/PCM Capture
Mobile to VoIP, VoIP to Mobile
Auto CLIP
HTTPS/HTTP Web Configuration
Work with Dinstar SIMCloud/SIMBank (Optional)
