MTG3000T

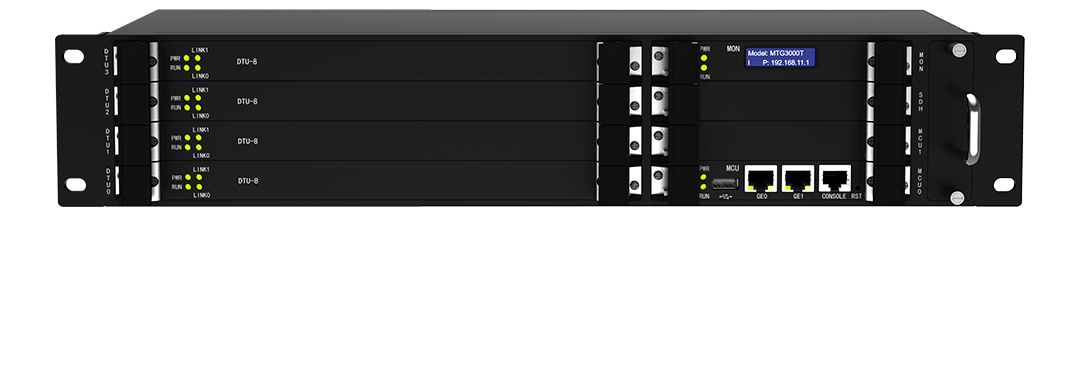

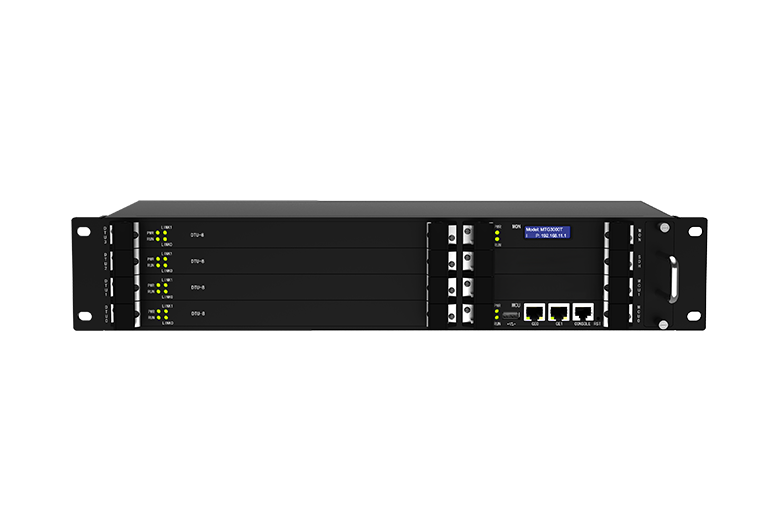

MTG3000T High Density Trancoding Gateway

MTG3000T series is a flexible and high-performance transcoding gateway with up to 1568 transcoding sessions. It converts simultaneous channels of transcoding among a number of popular voice codecs like G.711A/U, G.723.1, G.729A/B, iLBC,G.726 and AMR from IP to IP, bridge differences in capabilities between the telecommunications systems with high reliability.

Get a Quote

Gigabit Ports
T.38/T.30
SIP-SIP
Multi-codecs
NGN/IMS
SNMP

High Capacity Transcoding Gateway

Transcoding from IP to IP
Up to 2048 VoIP Sessions
Dual Power Supplies
Scalable by 4 DTUs Boards
Multiple SIP Trunks
Fully Compatible with Mainstream VoIP Platforms

Rich Experiences on PSTN Protocols

2U Size

T.38 and Pass-through fax

Support modem and POS machines

Flexible dialling rules, thus adapting to different requirements of different environments.

More than 10-year experiences to integrate with a wide range of Legacy PBXs/Service providers' PSTN networks

Easy Management

Intuitive Web interface
Support SNMP
Automated provisioning
Dinstar Cloud Management System
Configuration Backup & Restore
Advanced Debug tools

Product Features

Up to 4 Digital Processing Unit (DTU)
SIP Trunk Groups
2 GE ports
256 SIP trunks

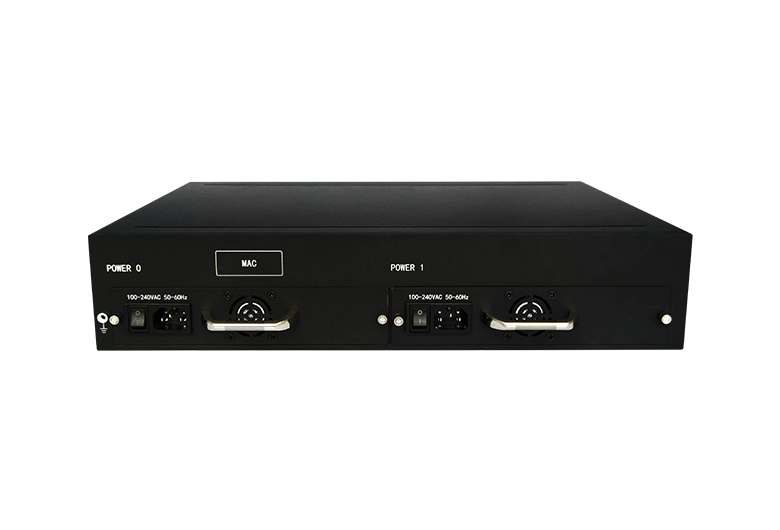

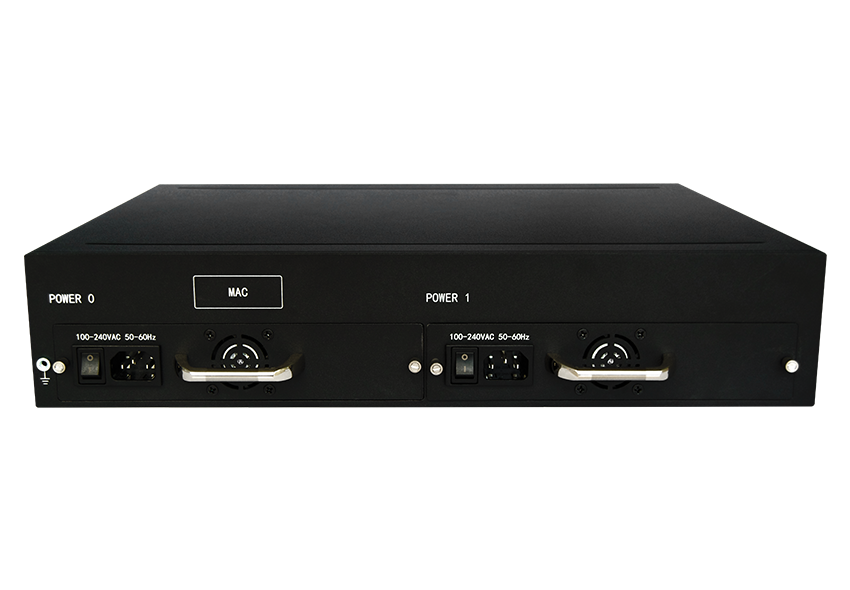

Redundant Power Supply
Outbound Proxy supported
G.711—G.711: 2048 sessions
Maximum 256 SIP accounts
G.711—G.729: 1568 sessions
Cloud based management system
G.711—G.723: 1344 sessions
Web GUI management

G.711—G.726: 2048 sessions
SNMP
G.711—iLBC: 960 sessions
Firmware Upgrade via TFTP/FTP/HTTP
G.711—AMR: 832 sessions
Support configuration backup/restore
G.723—G.729: 896 sessions
Local maintenance via console
SIP, SIP-T
Call trace/syslog
SIP Trunk Work Mode: Peer/Access

Call test
SIP/IMS Registration: with up to 256 SIP Accounts
Network capture
NAT: Dynamic NAT, Rport
Signaling hunter
Caller/Called Number Black lists
Voice codecs: G.711a/μ law, G.723.1, G.729A/B, iLBC, AMR
Caller/Called Number White lists
FAX: T.38 and Pass-through
IP access rule list
Support Modem/POS
