DP91 SIP Audio Intercom Datasheet
Download
DP91
DP91
DP91

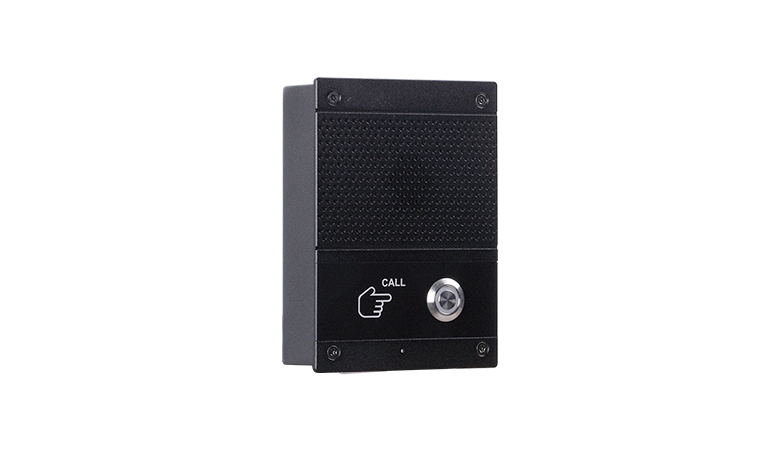

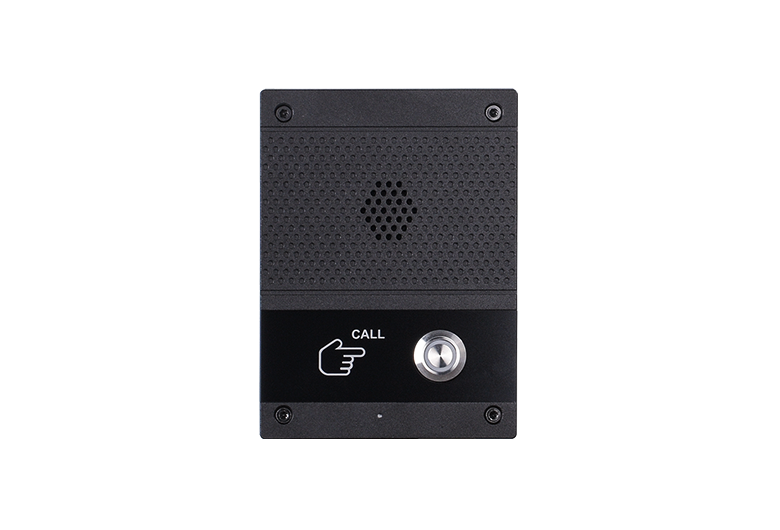

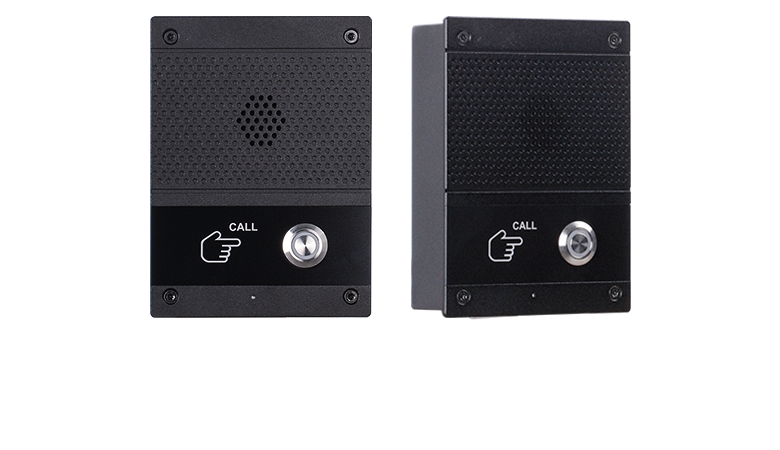

DP91 is a one-button mini audio SIP intercom with advanced audio system with the echo cancellation function. With its compact design, it’s suitable used in many applications such like hospital, campus, scenery site, The usage scenarios of DP91-S is very flexible, not only can be integrated into the parking barrier, but also compatible with the medical intercom pull cord switch.
DP91 offers keyless control and convenience for the users opening the door without a key. The door can be opened remotely via DTMF if there is an electronic door lock. DP91 also support one touch button for emergency calling. It’s ideal for control communication and security over internet such as command and dispatch, business, institutions applications, etc.
DP91 offers keyless control and convenience for the users opening the door without a key. The door can be opened remotely via DTMF if there is an electronic door lock. DP91 also support one touch button for emergency calling. It’s ideal for control communication and security over internet such as command and dispatch, business, institutions applications, etc.
-
SIP
-
HD Audio
-
Onvif
-
IK07
-
IP54
-
-35 ℃~65 ℃

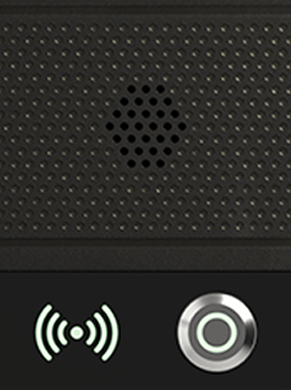

Mini Single Button SIP Intercom
- HD Audio
- Video Linkage
- Self-Diagnosis
- Auto Provision
- Wall mounting
- One touch button for emergency calling
- Metal housing, stability & reliability
- Unlock door with DTMF
- Compact design, easy to embed into a bollard
High Stability and Reliability
-
SIP v1 (RFC2543), v2 (RFC3261)
-
SIP over TLS, SRTP
-
TCP/IPv4/UDP
-
HTTP/HTTPS/FTP/TFTP
-
ARP/RARP/ICMP/NTP
-
DNS SRV/ A Query/NATPR Query
-
STUN, Session timer
-
DHCP/Static/PoE
-
DTMF Mode: In‐Band, RFC2833 and SIP INFO
Optional Model
-

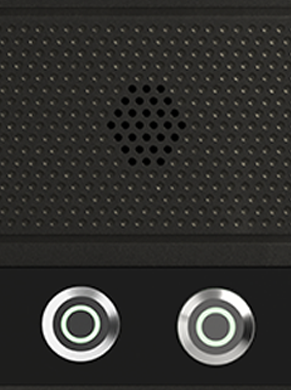

Dual Button
Optional Model
DP91-D
-
RFID
Optional Model
DP91-MS
Product Features
- DTMF Mode: In‐Band, RFC2833 and SIP INFO
- STUN, Session timer
- HTTP/HTTPS/FTP/TFTP
- SIP over TLS, SRTP
- Syslog
- Configuration web‐based management
- Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
- Voice activity detection (VAD)
- Wideband codec: G.722
- HD Voice
- Default auto answer
- DHCP/Static/PoE
- DNS SRV/ A Query/NATPR Query
- TCP/IPv4/UDP
- Configuration backup/restore
- SNMP/TR069
- HTTP/HTTPS Web Management
- Comfort noise generator(CNG)
- Codec: PCMA, PCMU, G.729, G723_53, G723_63, G726_32
- Two‐way audio stream
- Action URL/Active URI remote control
- Door Phone features
All Parameters
