DP85U-1B SIP Video Intercom Datasheet
Download
DP85/DP85U
DP85/DP85U

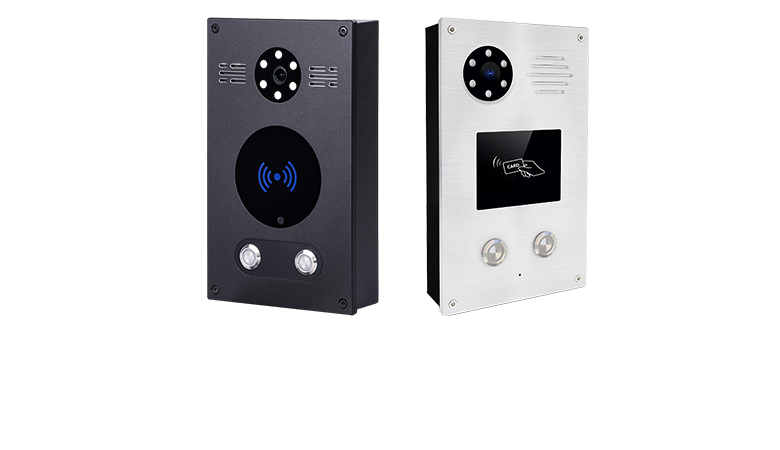

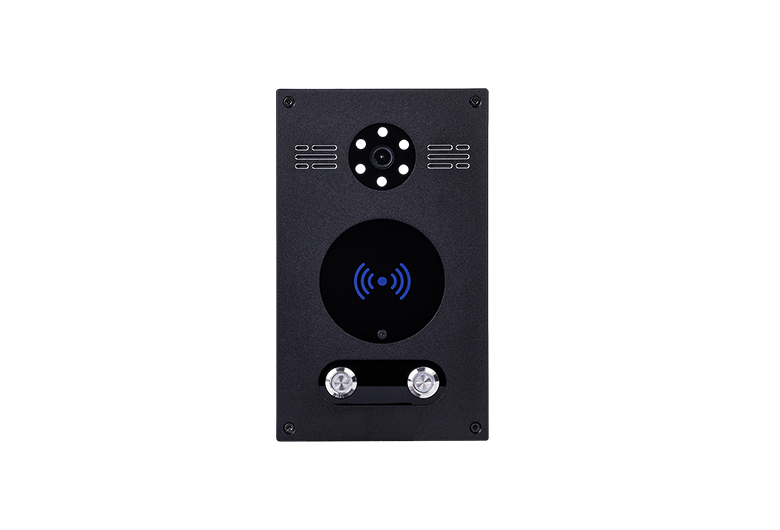

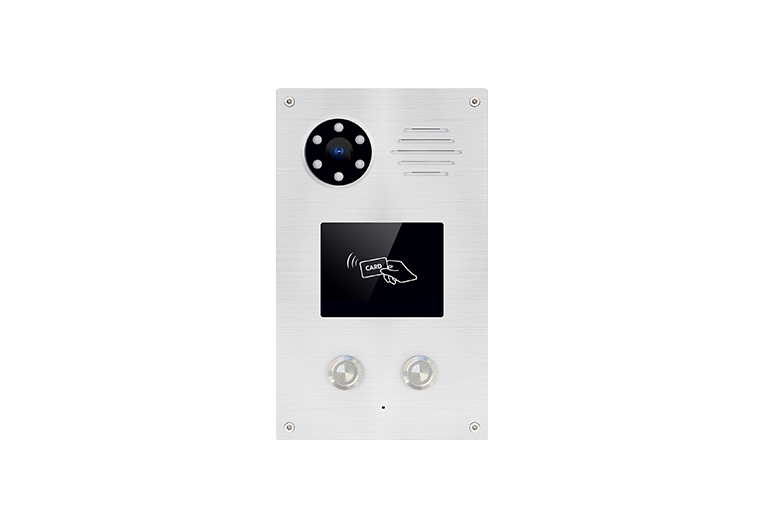

The DP85/DP85U is a SIP Video Intercom with the integrated HD camera, RFID card reader and advanced audio system. It supports H.264 video compression format and delivers excellent video quality in 1080P video resolutions. with the touch screen control pad, you can speak to visitors and view video from camera at any time.
The DP85/DP85U offers keyless control and convenience for the users which supports many ways of opening the door without a key. The door can be open remotely but also local IC/ID card if there is an electronic door lock. It’s ideal for control communication and security over internet such as business, institutional and residential applications.
The DP85/DP85U offers keyless control and convenience for the users which supports many ways of opening the door without a key. The door can be open remotely but also local IC/ID card if there is an electronic door lock. It’s ideal for control communication and security over internet such as business, institutional and residential applications.
-
SIP
-
HD Camera
-
HD Audio
-
IK10
-
IP65
-
-20 ℃~65 ℃
1080P HDSIP Video Intercom
- HD Voice
- 1080P HD camera
- Door Access: DTMF tones, IC/ID card
- Dual SIP line, Dual SIP servers
- Resolution: up to 1280 x 720
- Viewing Angle: 80°(H), 60°(V)
High Stability and Reliability
-
SIP v1 (RFC2543), v2 (RFC3261)
-
SIP over TLS, SRTP
-
TCP/IPv4/UDP
-
HTTP/HTTPS/FTP/TFTP
-
ARP/RARP/ICMP/NTP
-
DNS SRV/ A Query/NATPR Query
-
STUN, Session timer
-
DHCP/Static/PoE
-
DTMF Mode: In‐Band, RFC2833 and SIP INFO
Easy Management
- Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
- SNMP/TR069
- Configuration via HTTP/HTTPS web
- Configuration backup/restore
- Configuration web‐based management
- Syslog
Product Features
- Wall‐mounted installation
- Syslog
- SNMP/TR069
- HTTP/HTTPS Web Management
- Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
- HTTP/HTTPS/FTP/TFTP
- SIP over TLS, SRTP
- Viewing Angle: 80°(H), 60°(V)
- Voice activity detection (VAD)
- Wideband codec: G.722
- HD Voice
- Maximum image transfer rate: 1080P -30fps
- 2 SIP line, Dual SIP servers
- 2 call button
- Configuration backup/restore
- DTMF Mode: In-Band, RFC2833 and SIP INFO
- STUN, Session timer
- DHCP/Static/PoE
- TCP/IPv4/UDP
- Resolution: up to 1280 x 720
- Comfort noise generator(CNG)
- Codec: PCMA, PCMU, G.729, G723_53, G723_63, G726_32
- Two‐way audio stream
- Video Codec: H.264
- Door Access: DTMF tones
- 2M Pixels color CMOS camera
All Parameters
