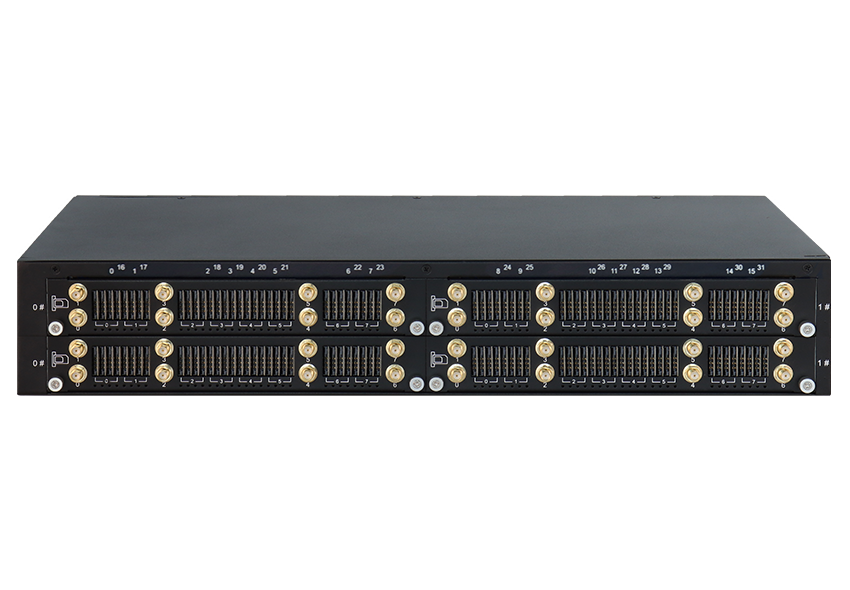

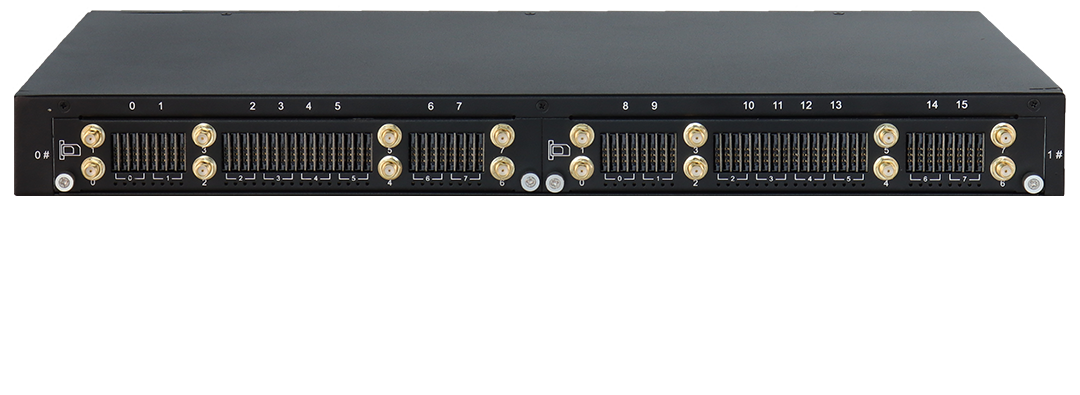

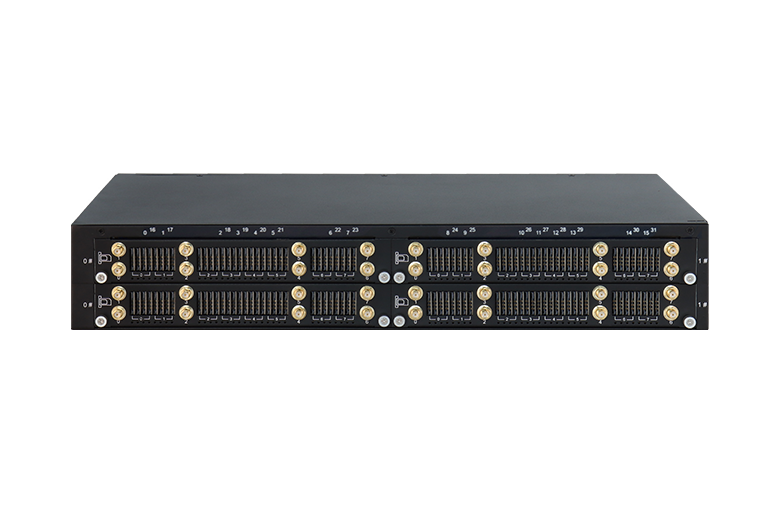

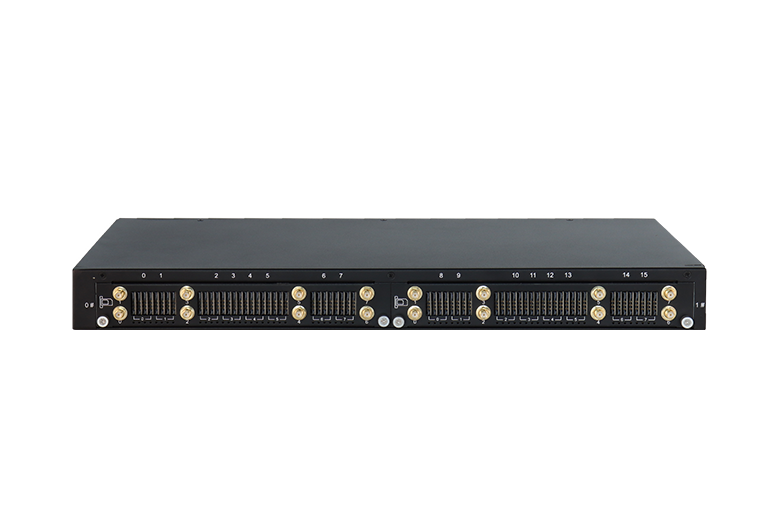

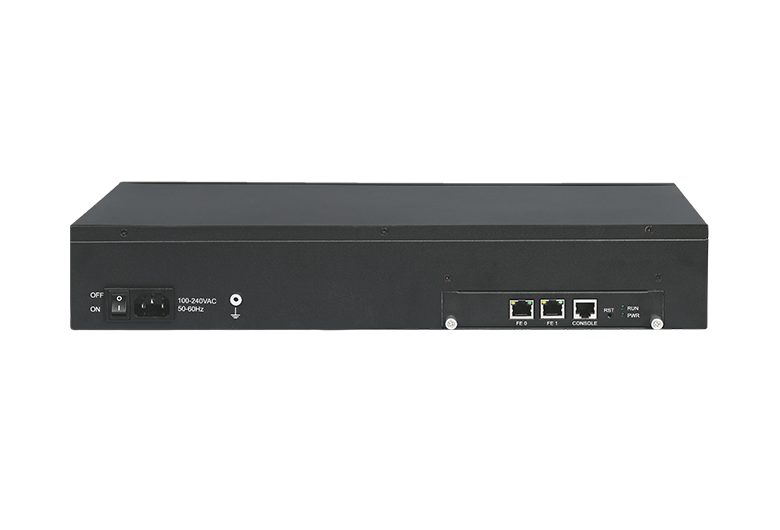

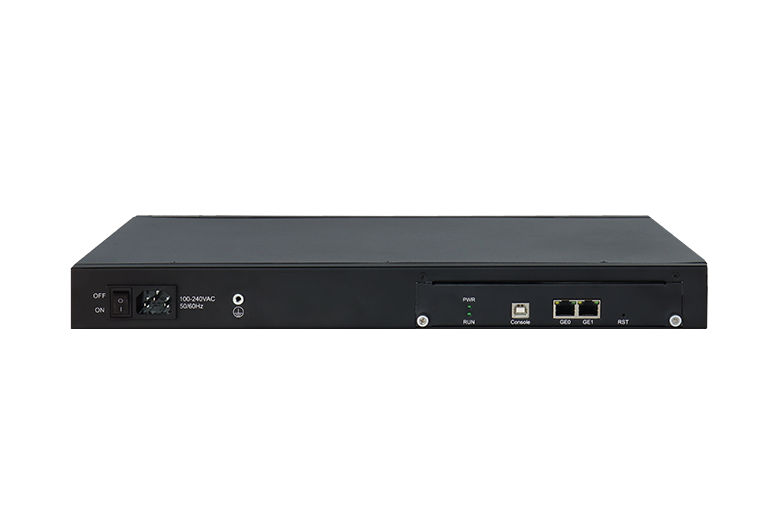

UC2000-VF (Multi-SIM)

Multi-SIM VoIP Gateway GSM VoIP Gateway

Dinstar Multi-SIM VoIP GSM/3G/4G Gateway adopts the cutting-edge Multi-SIM technology, 4 SIM slots per 1 GSM/3G/4G channel, enables the smooth transit between mobile and VoIP networks.

Combined the features of GSM/3G/4G gateway and built-in SIMBank, it is a easy-to-deploy and cost-effective solution for enterprises, service providers, bulk SMS services.

Get a Quote

Multi-SIM(1:4)
VoLTE
SMS
SIM Rotation
API
SIP

Multi-SIM VoIP GSM/3G/4G gateway

4 SIM slots per 1 GSM/3G/4G channel
32 chs / 128 SIM slots, 16 chs / 64 SIM slots, 8 chs / 32 SIM slots
Hot swappable SIM cards
All SIM slots in Front panel, easy to manage SIMs
Flexible SIMs allocation
SMS API for bulk SMS application

Application

Mobile connectivity for SME IP phone system

Mobile trunking for Multi-site offices

GSM/3G/4G as voice backup trunks

Call termination for service providers

Land-line replacement for rural area

Bulk SMS service

Call Center / Contact Center Solution

Easy Management

Intuitive Web Interface
System Log
Configuration Backup&Restore
Advanced Debug tools

Product Features

4 SIM slots per 1 GSM/3G/4G channel
32 chs / 128 SIM slots, 16 chs / 64 SIM slots, 8 chs / 32 SIM slots
Built-in antennas combiner (Optional)
GSM: 850/900/1800/1900Mhz
WCDMA: 900/2100Mhz or 850/1900Mhz
LTE: Multiple frequency choices for different countries
SIP v2.0, RFC3261
SIM Rotating by SIM run time, SIM balance
Codecs: G.711A/U , G.723.1, G.729AB
Echo Cancellation
DTMF: RFC2833, SIP Info
Programmable Gain Control
Mobile to VoIP, VoIP to Mobile
SIP Trunk and Trunk Group
Port and Port Group
Caller/Called Number Manipulation

SIP Codes Mapping
White/Black List
PSTN/VoIP Hotline
Abnormal Call Monitor
Call Minutes Limitation
Balance Check
Random Call Interval
Auto CLIP
Signaling & RTP Encryption
SMPP for SMS
HTTP API for SMS
Polarity Reversal
PIN Management
SMS/USSD
SMS to Email, Email to SMS

Call Waiting/Call Back
Call Forward
GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR
HTTPS/HTTP Web Configuration
Configure Backup/Restore
Firmware Upgrade by HTTP/TFTP
CDR(10000 Lines Storage Locally)
Syslog/Filelog
Traffic statistics: TCP,UDP,RTP
VoIP Call Statistics
PSTN Call statistics: ASR,ACD,PDD
IVR Customization
Auto Provisioning
SIP/RTP/PCM Capture
