MTG2000B

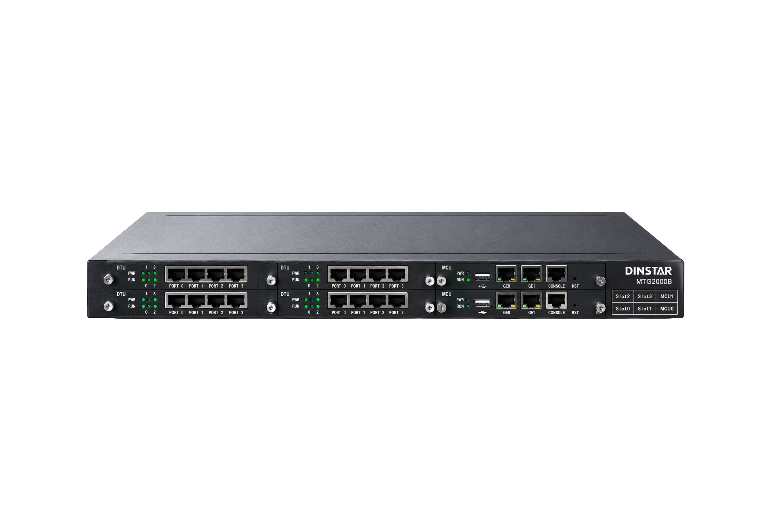

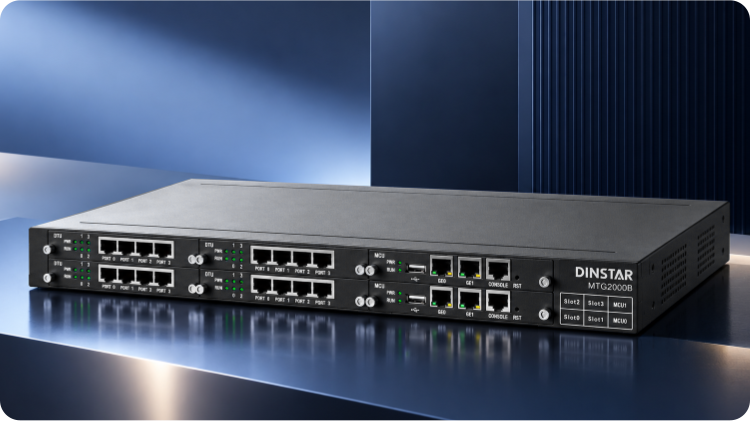

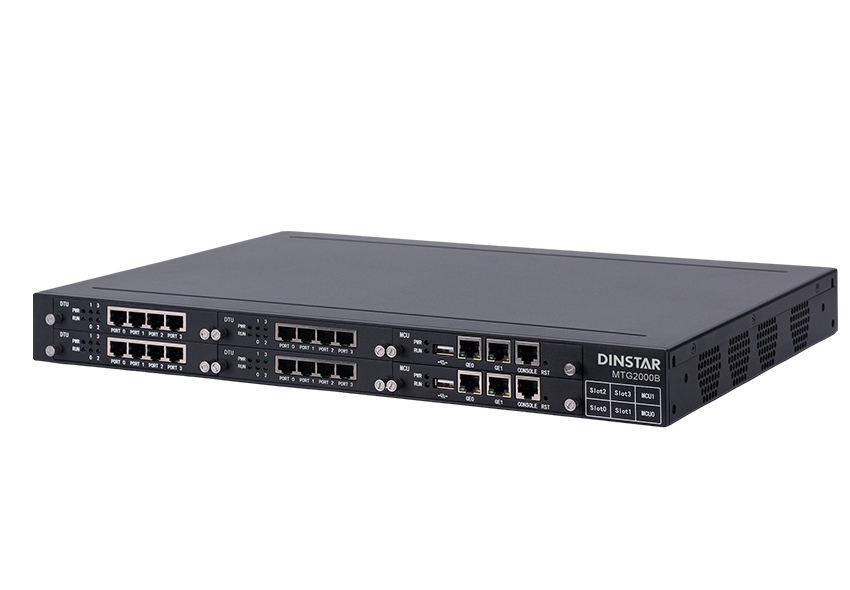

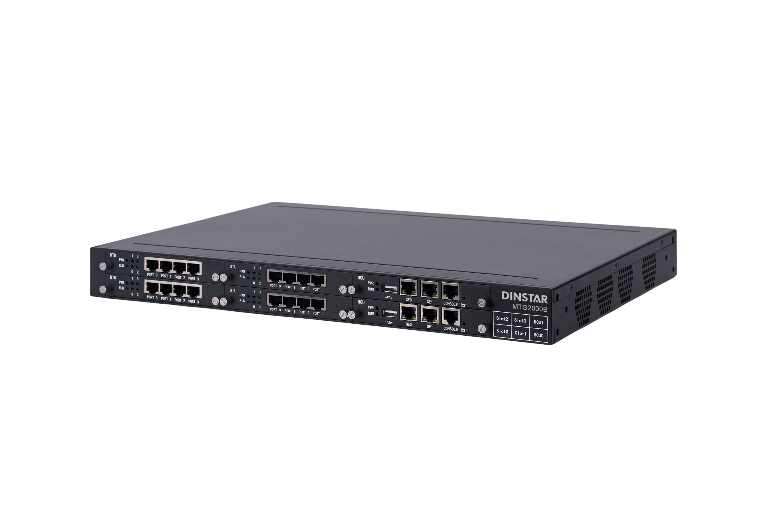

MTG2000B High Availability Digital VoIP Gateway

MTG2000B is a High Availability (HA) carrier-grade digital VoIP gateway equipped with redundant MCUs and redundant power supplies, scalable from 4 to 16 ports E1/T1. It provides carrier-grade VoIP and FoIP services, as well as value-added functions such as modem and voice recognition. With highly maintainable, manageable and operable features, it offers a flexible, high-efficient, future-oriented communication network for users.
MTG2000B supports a wide-range of signaling protocols, realizing the interconnection between SIP and traditional signals like ISDN PRI / SS7, utilizing efficiency of trunking resources while ensuring voice quality. With multiple voice codes, secure signal encryption and smart voice recognition technology, MTG2000B is ideal for various applications of large enterprises, call centers, services providers and telecom operators.

Get a Quote

E1/T1
T.38/T.30
PRI
SS7
NGN/IMS
SNMP

Scalable Digital VoIP Gateway for Service Providers

4 to 16 ports E1/T1 in 1U chassis
Up to 480 simultaneous calls
Redundant MCUs (Main Control Unit)

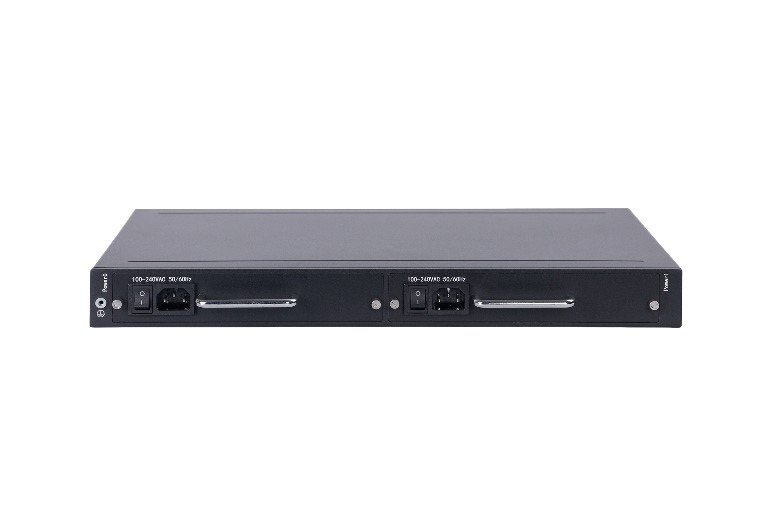

Dual Power Supplies
Flexible routing
Multiple SIP trunks
Fully compatible with mainstream VoIP platforms

Rich Experiences on PSTN Protocols

ISDN PRI

ISDN SS7, SS7 links redundancy

R2 MFC

T.38 and Pass-through fax

Support modem and POS machines

More than 10-year experiences to integrate with a wide range of Legacy PBXs/Service providers' PSTN networks

Easy Management

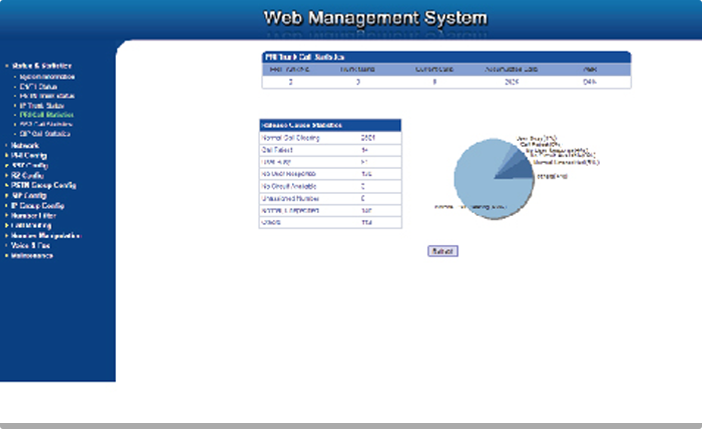

Intuitive Web interface
Support SNMP
Automated provisioning
Dinstar Cloud Management System
Configuration Backup & Restore
Advanced Debug tools

83596140

Product Features

4/8/12/16/ E1s/T1s, RJ48 interface
Dual Power Supplies
2 GE
SIP v2.0
SIP-T,RFC3372, RFC3204, RFC3398
SIP Trunk Work Mode: Peer/Access
SIP/IMS Registration :with up to 256 SIP Accounts
NAT: Dynamic NAT, Rport
Flexible Route Methods: PSTN-PSTN, PSTN-IP, IP-PSTN
Intelligent Routing Rules
Call Routing base on Time
Call Routing base on Caller/Called Prefixes
256 Route Rules for each Direction
Caller and Called Number Manipulation

Local/Transparent Ring Back Tone
Overlapping Dialing
Dialing Rules, with up to 2000
PSTN group by E1 port or E1 Timeslot
IP Trunk Group Configuration
Voice Codecs Group
Caller and Called Number White Lists
Caller and Called Number Black Lists
Access Rule Lists
IP Trunk Priority
Radius
Codecs:G.711a/μ law,G.723.1, G.729A/B, iLBC 13k/15k,AMR
Silence Suppression
Comfort Noise
Voice Activity Detection

Echo Cancellation (G.168),with up to 128ms
Adaptive Dynamic Buffer
Voice, Fax Gain Control
FAX:T.38 and Pass-through
Support Modem/POS
DTMF Mode: RFC2833/SIP Info/In-band
Clear Channel/Clear Mode
ISDN PRI:
Signal 7/SS7: ITU-T, ANSI, ITU-CHINA, MTP1/MTP2/MTP3, TUP/ISUP
R2 MFC
Web GUI Configuration
Data Backup/Restore
PSTN Call Statistics
SIP Trunk Call Statistics
Firmware Upgrade via TFTP/Web
SNMP v1/v2/v3
Network Capture
Syslog: Debug, Info, Error, Warning , Notice
Call History Records via Syslog
NTP Synchronization
Centralized Management System

All Parameters Product Comparison
